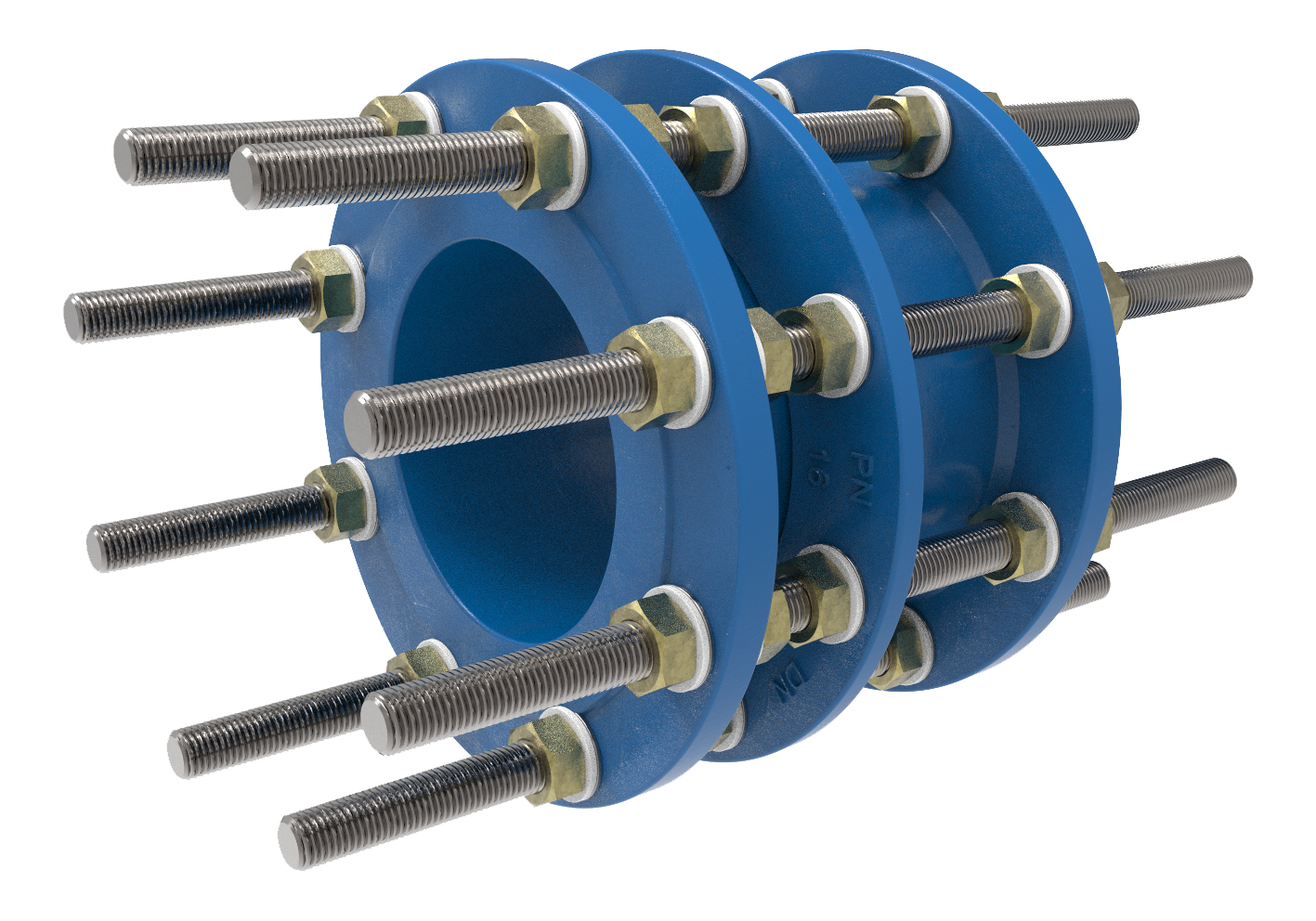

BV51: Dismantling joint, H & V installation (DN50 – DN1200  /  2” – 48”)

NOTE: BODY-JOINT-TIE ROD
Ductile iron-EPDM-SS  AISI 304
* according Aquafin specifications :
epoxy coating min. 310 micron, tie rods with additional PTFE rings, brass nuts, SS tie rods





Belven-BV51 Catalog


BV51 Installation

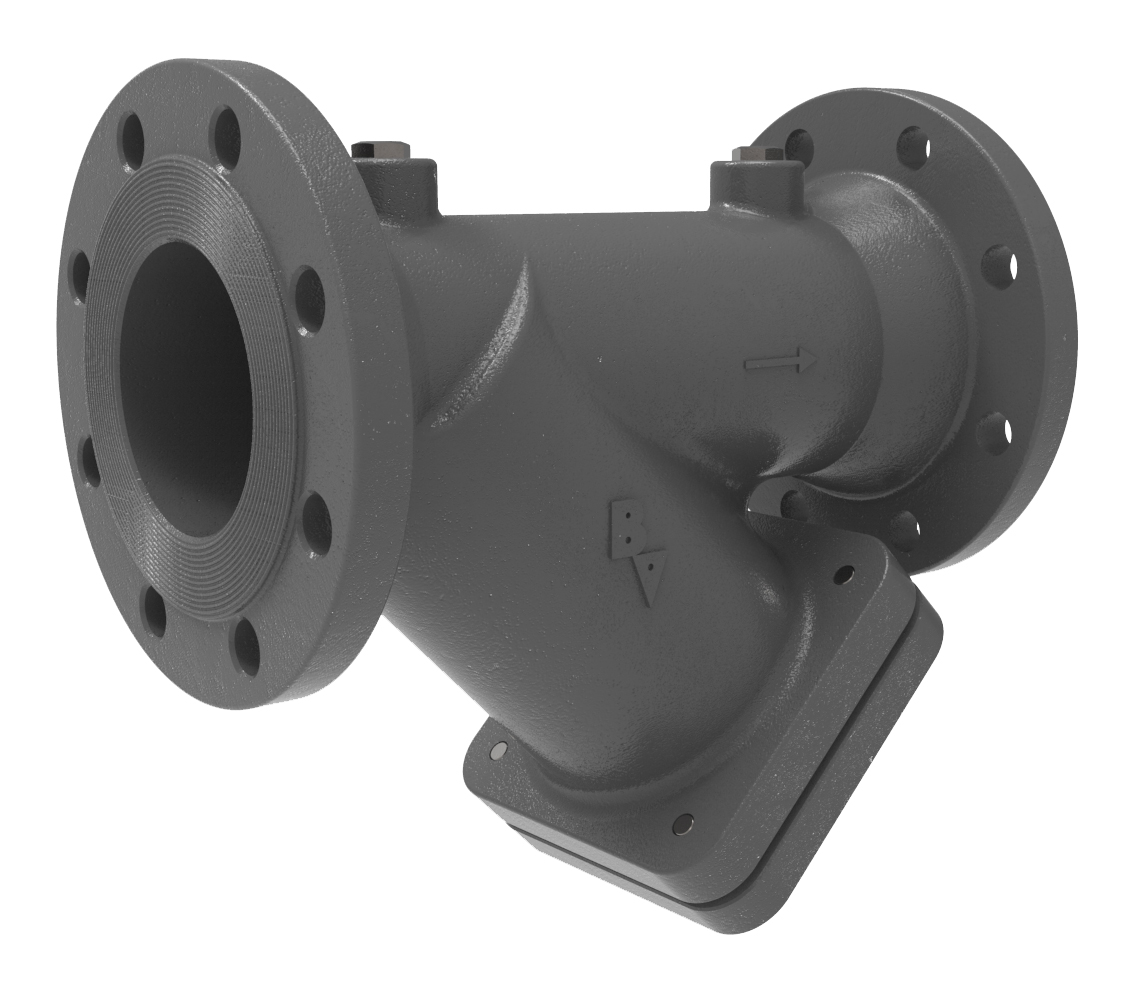

BV56: Y-Strainers (DN15 – DN600  /  ½ ” – 24”)

NOTE: BODY-SCREEN-GASKET
Cast iron-SS  AISI 316-Aramid fiber
Cast iron-SS  A182-F304-Graphite
Ductile iron-SS A182-F304-Grafilit






Belven-BV56 Catalog


BV56 Installation
