BV10: Wafer – CL150 (DN32 - DN1200 / 1 1/4" - 48")
*from DN1050 / 42" - U-section design with holes drilled through
**seat vulcanized on exchangeable backup ring |
|
Belven-BV10 Catalog
BV10 Installation
|

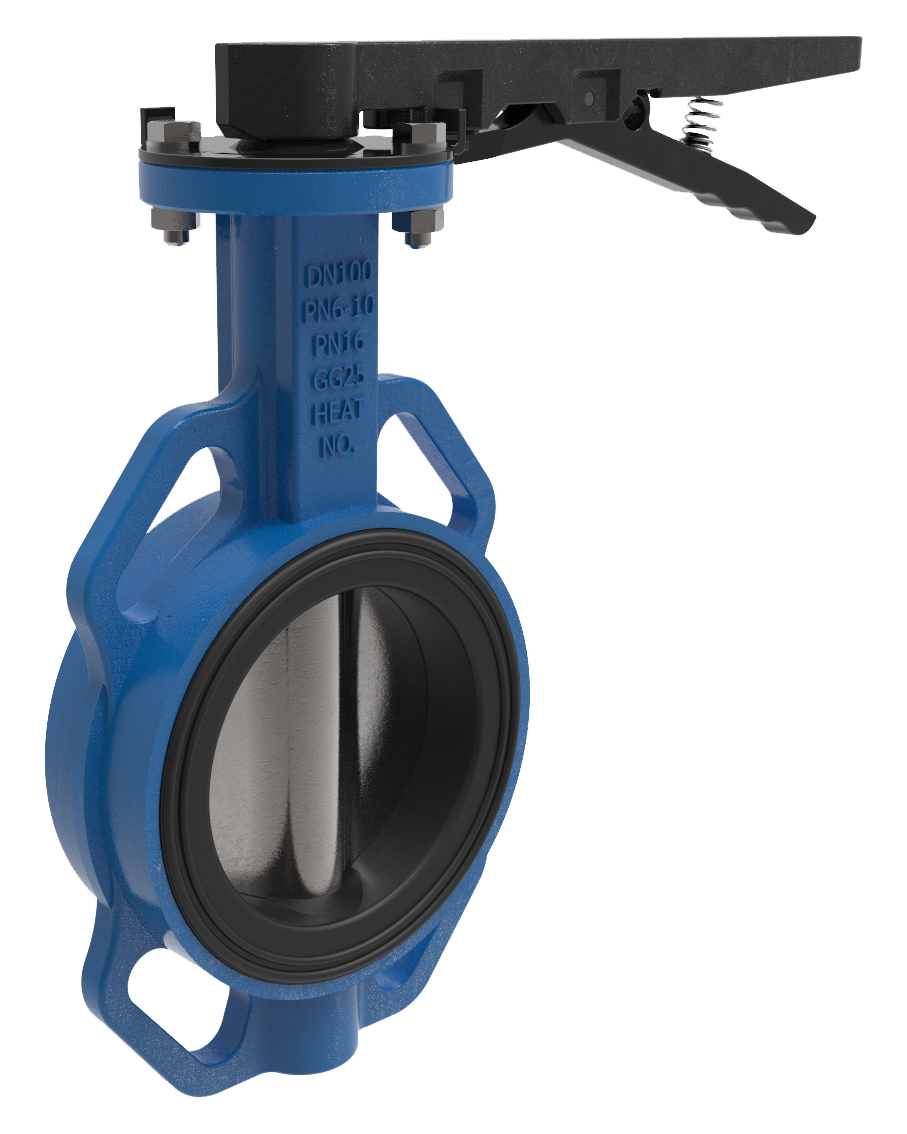

BV10NP: Wafer – CL150 (DN50 - DN300 / 2" - 12")
**soft seat execution |
|
Belven-BV10NP Catalog |
BV10-TFM: Wafer – CL150 (DN25 - DN600 / 1" - 24")
**TFM backup seat for high performance demands. |
|
Belven-BV10-TFM Catalog |
|

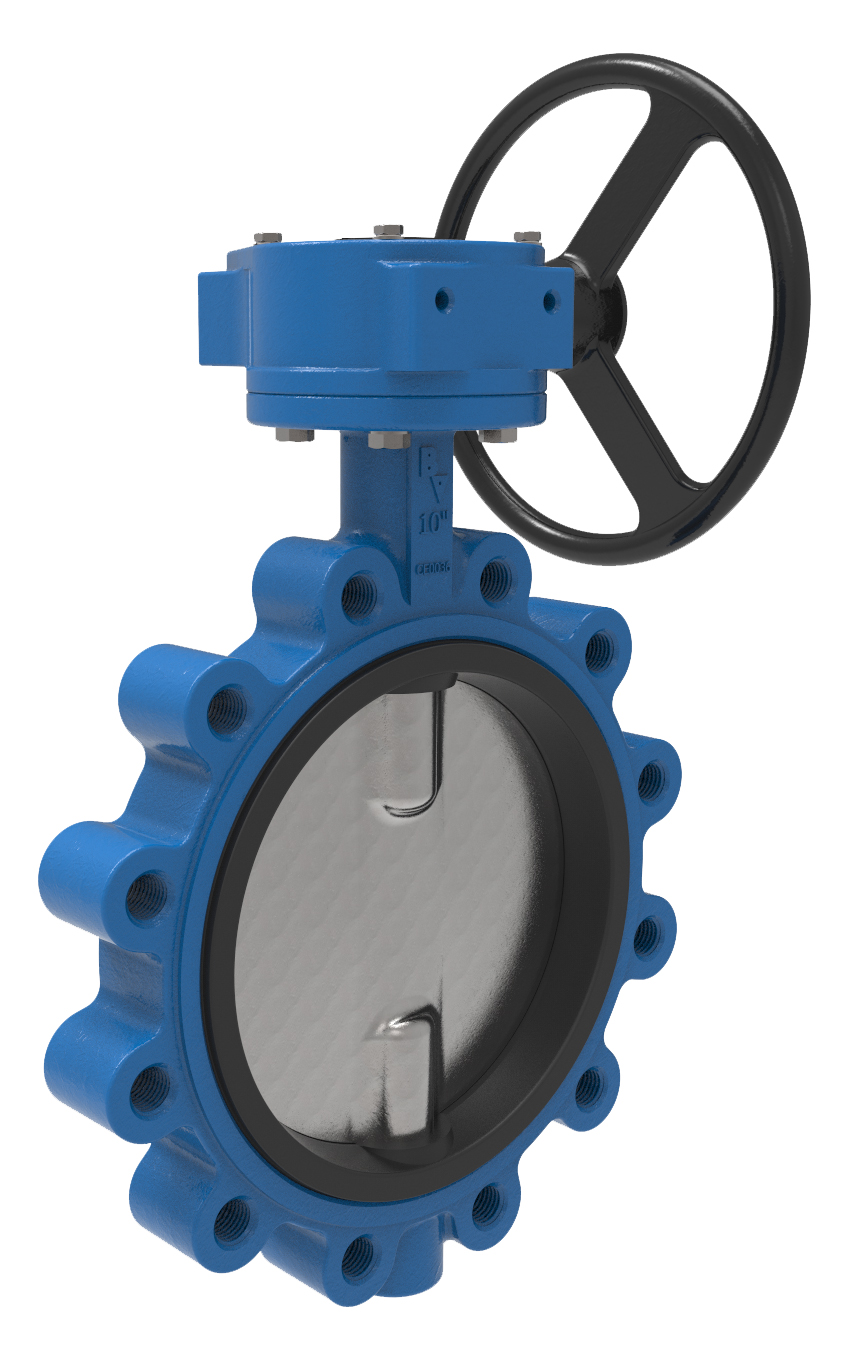

BV11: U-section wafer – CL150 (DN350 - DN1200 / 14" - 48") |
|
Belven-BV11 Catalog
|
BV12: Lug – CL150 (DN40 - 1200 / 1 1/2" - 48")
*from DN700 / 28" - U-section design with internally threaded holes
** backup seat or soft seat execution |
|
Belven-BV12 Catalog |
BV12-TFM: Lug; 2-piece – CL150 (DN40 - DN600 / 1 1/2" - 24")
**TFM backup seat for high performance demands |
|
|
BV13: Double flanged eccentric (DN200 - DN2800)
*In single or double offset upon the requests. |
|
|
BV14: Double flanged concentric – CL150 (DN50 - DN2000 / 2" - 80")
** vulcanized seat on the body |
|
Belven-BV12 Catalog
|
